Order number
S12100H
Availability
Usually in stock
Documents
Description

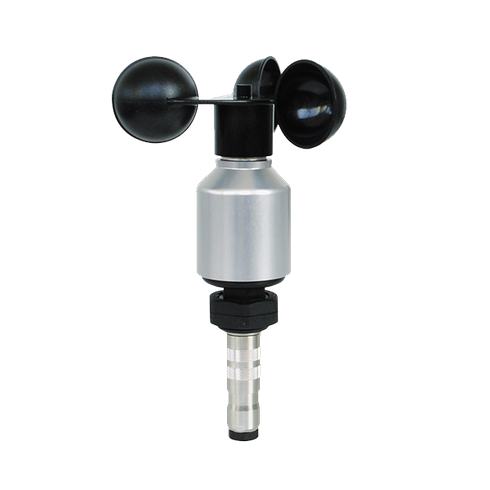

Ammonit’s standard is heated version. It can be used for both heated and non-heated system.
- Opto-electronic wind speed sensor
- “Low Power” – Frequency output signal
- Range 0.5 … 50m/s
- Resolution < 0.1m/s
Specifications
| Characteristics | |
|---|---|
| Measurement principle | Opto-electronic (slotted disc) |
| Accuracy | |
| Accuracy | ±3% of meas. value, however ≥ 0.5m/s |
| Resolution | < 0.1m/s |
| Starting velocity | 0.5m/s |
| Operating range | |
| Measurement range | 0 … 50m/s |
| Survival wind speed | max. 80m/s (30 min) |
| Ambient temperature | -40 … +70°C |
| Electrical data | |
| Electrical supply | 9 … 30V DC |
| Electrical supply for heating | 24V AC/DC @ 20W |
| General | |
| Connection | 7-pole plug-connection |
| Mounting | For ex. onto mast tube with receptable thread Pg21 or boring Ø 29mm |
| Dimensions | 155 x Ø 134mm |
| Weight | approx. 0.7kg |
| Material | Housing: Aluminium Cup star: Synthetic with fibre glass |
| Type of ball bearings | Metallic ball bearings |
| Protection | IP 55 |
| Manufacturer | Thies |
Dimensional drawing
Sensor connection diagram

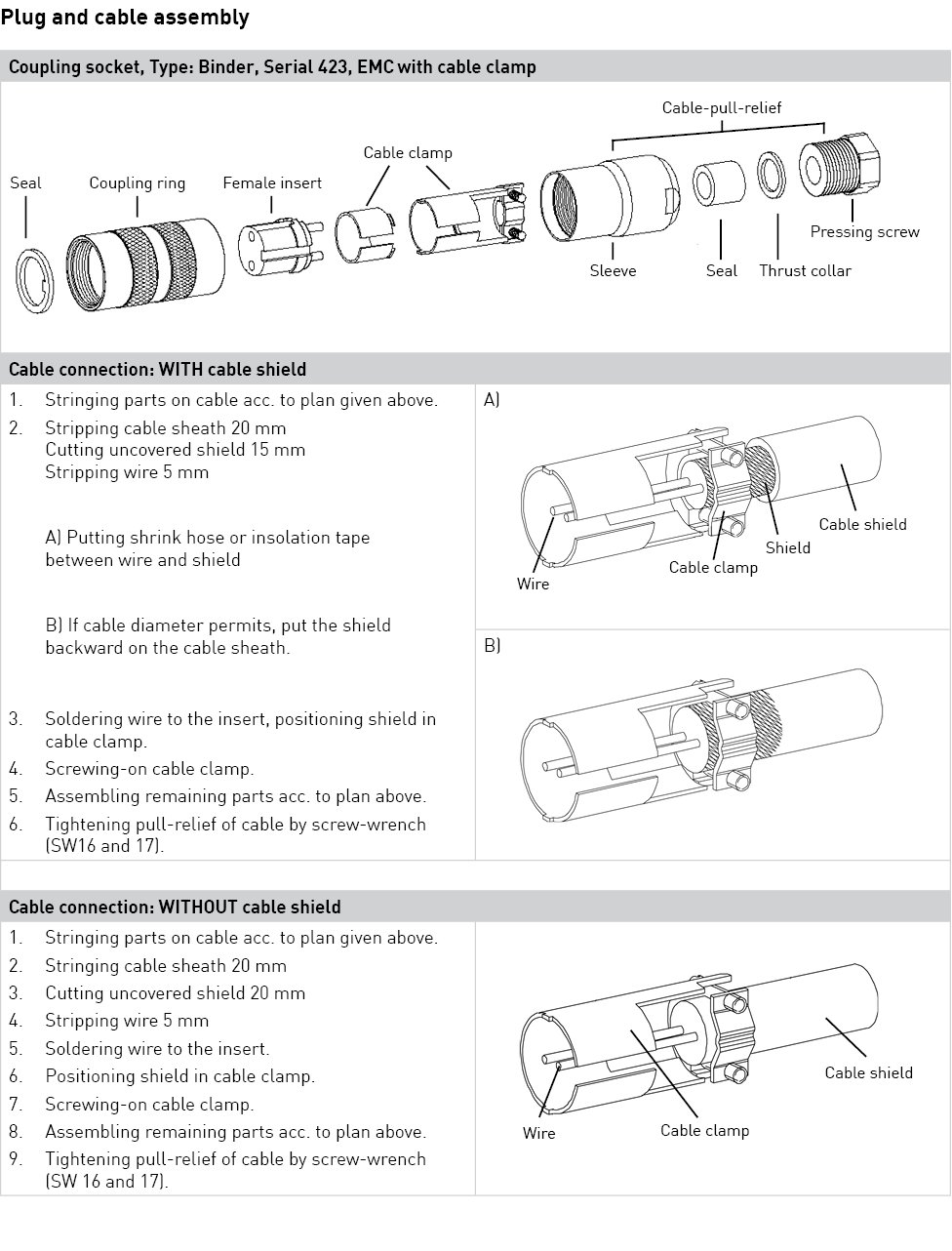

Instructions
