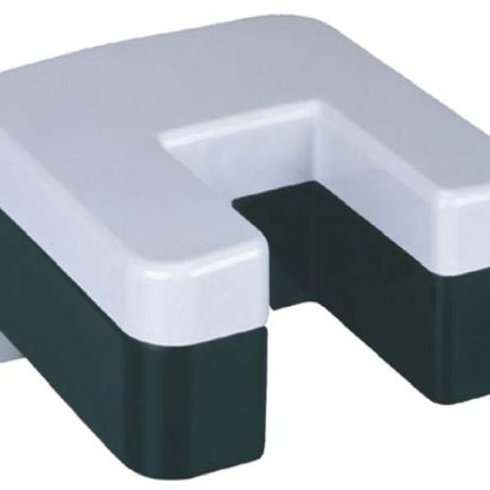

Precipitation Monitor Thies

Posted on by admin

Precipitation Monitor Thies

Order number

S72100H/S72110H

Availability

On request

Accessories

Documents

Download PDF

Description

The Thies Precipitation Monitor transmits signals to determine the beginning and end of precipitation as well as the duration of the period of precipitation.

Specifications

Charateristic Desciption / Value
Measuring value  Status of precipitation
Drop size  ≥ 0.2mm
Switch-on condition 1 … 15 incidences within 50 seconds
Switch-on /-off delay  none / 25 … 375 seconds
Operating range
Ambient temperature -30 … 60°C
Electrical data
Electrical supply 12 – 28VDC / 50mA
1,2A @ 24VDC
Relais S72100H: HZ Modus A
S72110H: HZ Modus C
General
Mounting Mounting on mast tube Ø 34 … 50 mm
Dimension 38 x 125 x 136mm (height x width x length)
Weight 0.4kg
Protection IP 65
Manufacturer Thies

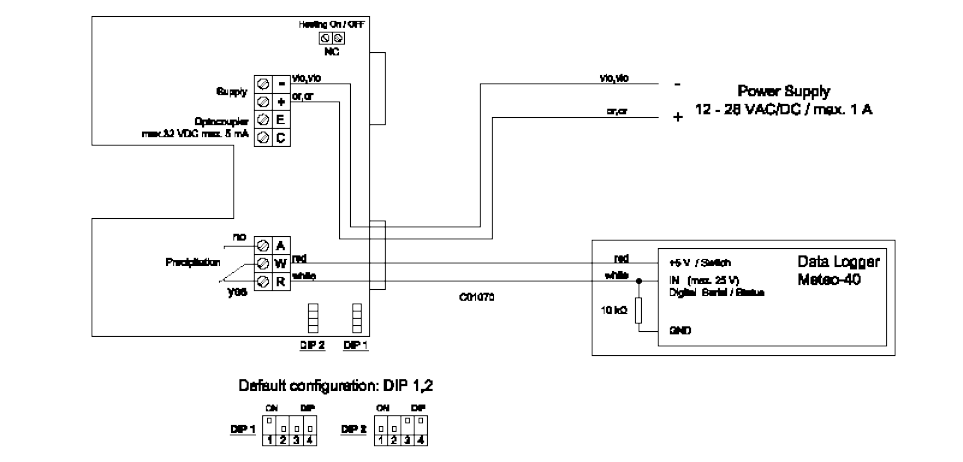

Sensor connection diagram
