Order number
S64170
Availability
On request
Documents
Description
- ISO 9060 Spectrally flat Class A + IEC 17025 calibrated
- 5-year warranty and re-calibration period
- Fast response time < 1s @ 95%
- Exceptional long-term stability ±0.5%/5 years
- MS-80 with analog voltage output

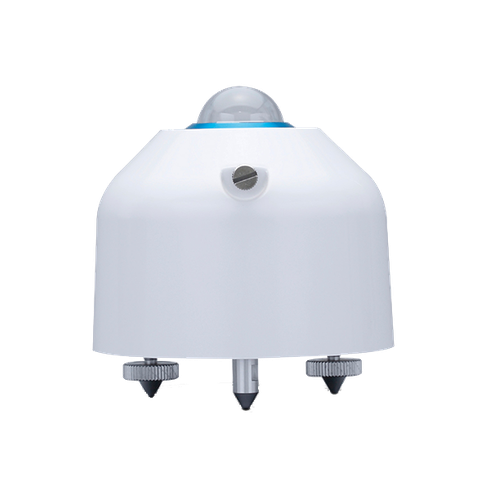

The MS-80 Secondary Standard pyranometer was inspired by the combination of latest technologies and state-of-the-art thermopile sensors, enabling a breakthrough in unprecedented low zero-offset behaviour and fast sensor response. The compact sensor with single dome, based on a isolated thermopile detector and Quartz diffusor is immune to offsets and integrates all optional value added functions such as a ventilator, heater and different industrial interfaces. The heater and ventilator are recommended, particularly over areas impacted by dew, frost, snow, and dust.
MS-80 is designed with analog voltage output. The analogue MS-80 pyranometer can be used as a reference sensor to measure the global broad-band solar radiation with a high accuracy. With excellent temperature response and non-linearity characteristics, it provides optimal performance throughout the year.
Specifications
| Classification | ISO 9060 Secondary Standard |
|---|---|
| Output | Voltage (mV) |
| Sensitivity | ~ 10µV/W/m-2 |
| Resolution | – |
| Wavelength range | 285 … 3000nm |
| Max. operational irradiance | 4000W/m² |
| Response time (95%) | < 0.5s |
| Response time (99%) | < 1s |
| Zero offset (a) thermal radiation (200 W/m²) (b) temperature change (5k/hr) |
1W/m² ±1W/m² |
| Non-linearity | ±0.2% |
| Long-term stability | ±0.5% / 5 years |
| Direction response | ±10 W/m² |
| Temperature response (-20 … +50°C) | < 1 % |
| Tilt response @ 1000 W/m² | ±0.2% |
| Impedance | approx. 45kΩ |
| Operating temperature | -40 … +80°C |
| Power supply | |
| Power consumption | |
| Cable length | 10m |
| Weight | 0.4kg |
| Protection class | IP67 |
| Warranty | 5 years |
| Manufacturer | EKO Instruments |
| Accessory | Thies Universal Amplifier (Order-No. S05000) |
| MV-01 ventilator / heater (Order-No. S64060) |
Delivery includes IEC 17025 calibration certificate.
