Description
- ISO 9060 Spectrally flat Class A + IEC 17025 calibrated
- 5-year warranty and re-calibration period
- Fast response time < 1s @ 95%
- Exceptional long-term stability ±0.5%/5 years
- MS-80 with analog voltage output

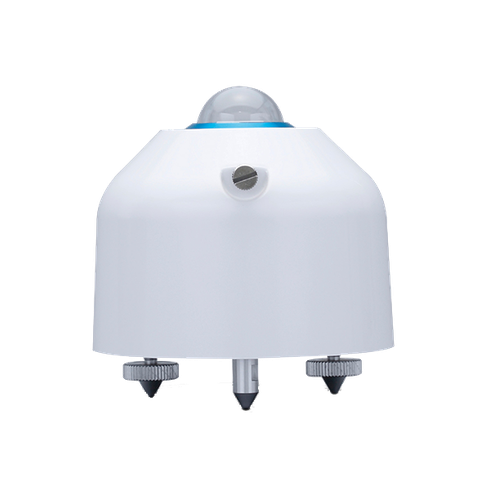

The MS-80 Secondary Standard pyranometer was inspired by the combination of latest technologies and state-of-the-art thermopile sensors, enabling a breakthrough in unprecedented low zero-offset behaviour and fast sensor response. The compact sensor with single dome, based on a isolated thermopile detector and Quartz diffusor is immune to offsets and integrates all optional value added functions such as a ventilator, heater and different industrial interfaces. The heater and ventilator are recommended, particularly over areas impacted by dew, frost, snow, and dust.
MS-80 is designed with analog voltage output. The analogue MS-80 pyranometer can be used as a reference sensor to measure the global broad-band solar radiation with a high accuracy. With excellent temperature response and non-linearity characteristics, it provides optimal performance throughout the year.
Specifications
| Classification | ISO 9060:2018 Class A + IEC 17025 calibration ISO 9060:1990 Secondary Standard |
|
|---|---|---|
| Order-Nr. | S64180 | S64185 |
| Current Output 0 … 10mA |
Modbus RTU via RS485 | |
| Typical Sensitivity | 10µV/W/m² | |
| Wavelength range | 285 … 3 000nm | |
| Max. operational irradiance | 4 000W/m2 | |
| Response time (95%) | < 0.5s | |
| Zero offset (a) 200 W/m² (b) 5 k/hr (c) complete |
±1W/m² ±1W/m² ±2W/m² |
|
| Non-stability change/5 years | ±0.5% | |
| Non-linearity at 1 000W/m2 | ±0.2% | |
| Directional response at 1 000W/m2 | ±10W/m² | |
| Spectral error | ±0.2% | |
| Temperature response -10°C … +40°C | ±0.5% | |
| Temperature response -20°C … +50°C | ±0.5% | |
| Tilt response @ 1000 W/m² | ±0.2% | |
| Operating temperature range | -40 … +80°C | |
| Power supply | 5 … 30 VDC | |
| Power consumption | <0.2W | |
| Cable length | 10m | |
| Protection class | IP67 | |
| Warranty | 5 years | |
| Manufacturer | EKO Instruments | |
| Accessory | Precision Shunt 100Ω | M83570 |
| MV-01 ventilator / heater (Order-No. S64060) | ||
Delivery includes IEC 17025 calibration certificate.

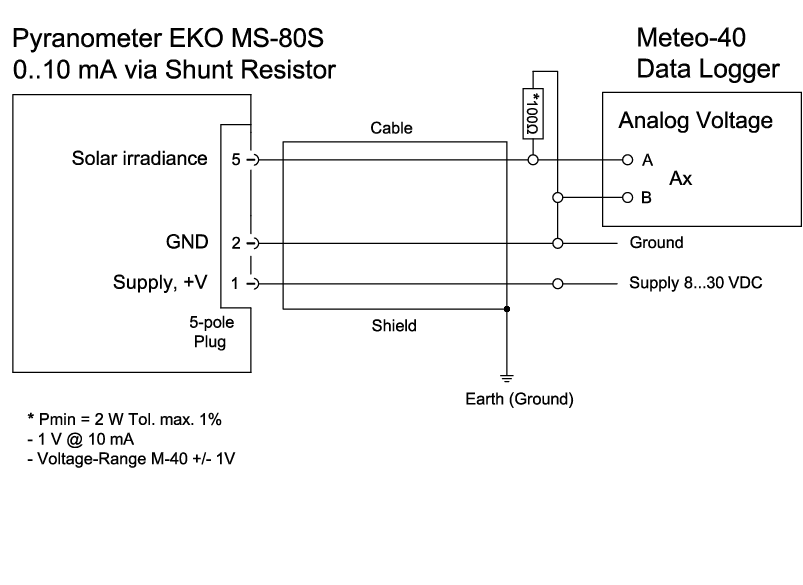

Sensor connection diagram
| Sensor | EKO Wire Color | Meteo-40 RS-485 Master | Sensor Supply | |
|---|---|---|---|---|
| 0 … 10 mA (-) | white | AVx B | (shunt) | |
| 0 … 10 mA (+) | grey | AVx A | ||
| RS-485 (+) | blue | B+ | ||
| RS-485 (-) | black | A- | ||
| RS-485 GND | white | GND | ||
| Supply | brown | 12V DC | ||
| GND | white | GND |
