Description

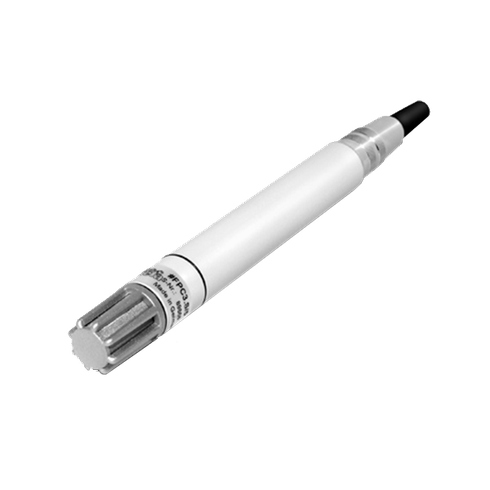

- The temperature humidity sensor series „xP“ are compact sensors in stick version with fixed connected cable.
- The relative humidity is measured by a capacitive sensing element and the value will be placed at the output as analogue signal.
- The temperature measurement is made by a P100-resistor (1/3 DIN).
- The signal is available as an analogue output as well.
- The sensors are obtainable as single temperature probe or as combined sensor for temperature and humidity measurement.
Specifications
| Characteristic | Description / Value |
|---|---|
| Measurement principle | Pt100 1/3 DIN acc. DIN EN 60751 |
| Measurement range | -30 … +70°C |
| Slope (Data Logger Meteo-40) | 100 |
| Offset (Data Logger Meteo-40) | -30 |
| Accuracy | ±0.2K (-27 … +80°C) |
| Additional error | ±0.007K/K (<10°C, >40°C) |
| Operating range | |
| Ambient temperature | -40 … +80°C |
| Minimum air speed (across sensor) | ≥ 0.5m/s |
| Electrical data | |
| Output signal | 0 … 1V |
| Operating supply | 6 … 30VDC |
| Current Consumption @ 12 V DC | 2 mA |
| General | |
| Connection | 7-pol plug for shielded cable |
| Dimensions | 155 x Ø 20mm |
| Weight | approx. 0.1kg |
| Protection Sensor | IP 30 |
| Protection Electronic | IP 65 |
| Protection Coupling | IP 67 |
| Manufacturer | Galltec |

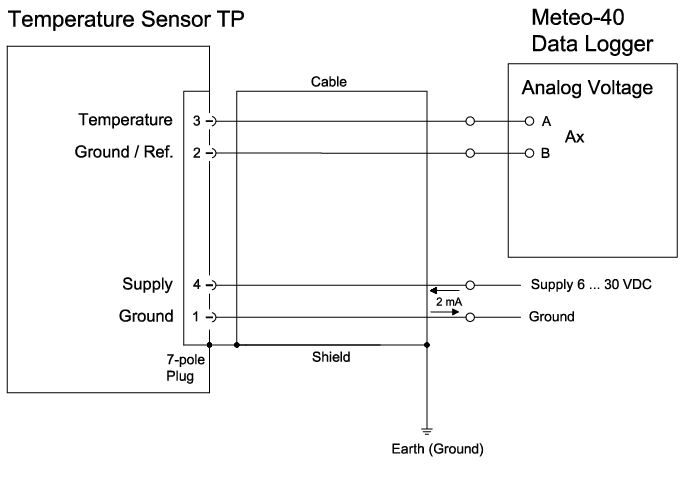

Sensor connection diagram
| ensor | Plug Pin No. | Ammonit Cable Wire Colour | Meteo-40 Analog Voltage | Supply Sensor |
|---|---|---|---|---|
| Temperature Output Voltage |
3 | white | Ax | |
| Ground | 2 | blue | Bx | |
| Supply | 4 | red | 9 … 30 VDC* | |
| Ground | 1 | black | Main Ground |
*Supply voltage for usage with Meteo-40 data loggers
Cable type: LiYCY 4 x 0.25mm²
Connect the shield logger-sided to Ground (GND)
